BatteryLevelIndicator
🔋 Battery status with LED display!
The Battery Level Indicator is an open-source project designed to visually display the charge level of a battery using five green LEDs and a sixth red LED for critical low levels. The board also features an ON/OFF button that activates the system, illuminating two white LEDs when turned on and two blue LEDs at other times.
🎯 Purpose
- 🔋 Battery Monitoring: Provides an intuitive LED-based display of battery charge levels.
- 🔘 Power Control: Includes an ON/OFF switch for system activation.
- 🌟 User-Friendly: Simple and effective visual indicators for battery status.
- 🛠️ Open-source & Customizable: Modify and adapt for various battery-powered projects.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔋 Battery Level Indication | 5 green LEDs indicate battery charge level |
| 🚨 Low Battery Warning | 1 red LED lights up when the battery is critically low |
| 🔘 Power Switch | ON/OFF button for system control |
| 💡 ON Indicator | 2 white LEDs light up when the system is ON |
| 🔵 Standby Indicator | 2 blue LEDs light up in other situations |
| 🖥️ PCB Design | Open-source & customizable |
| 🌍 Use Cases | Battery-powered devices, embedded systems, and monitoring applications |
📐 PCB Design Preview

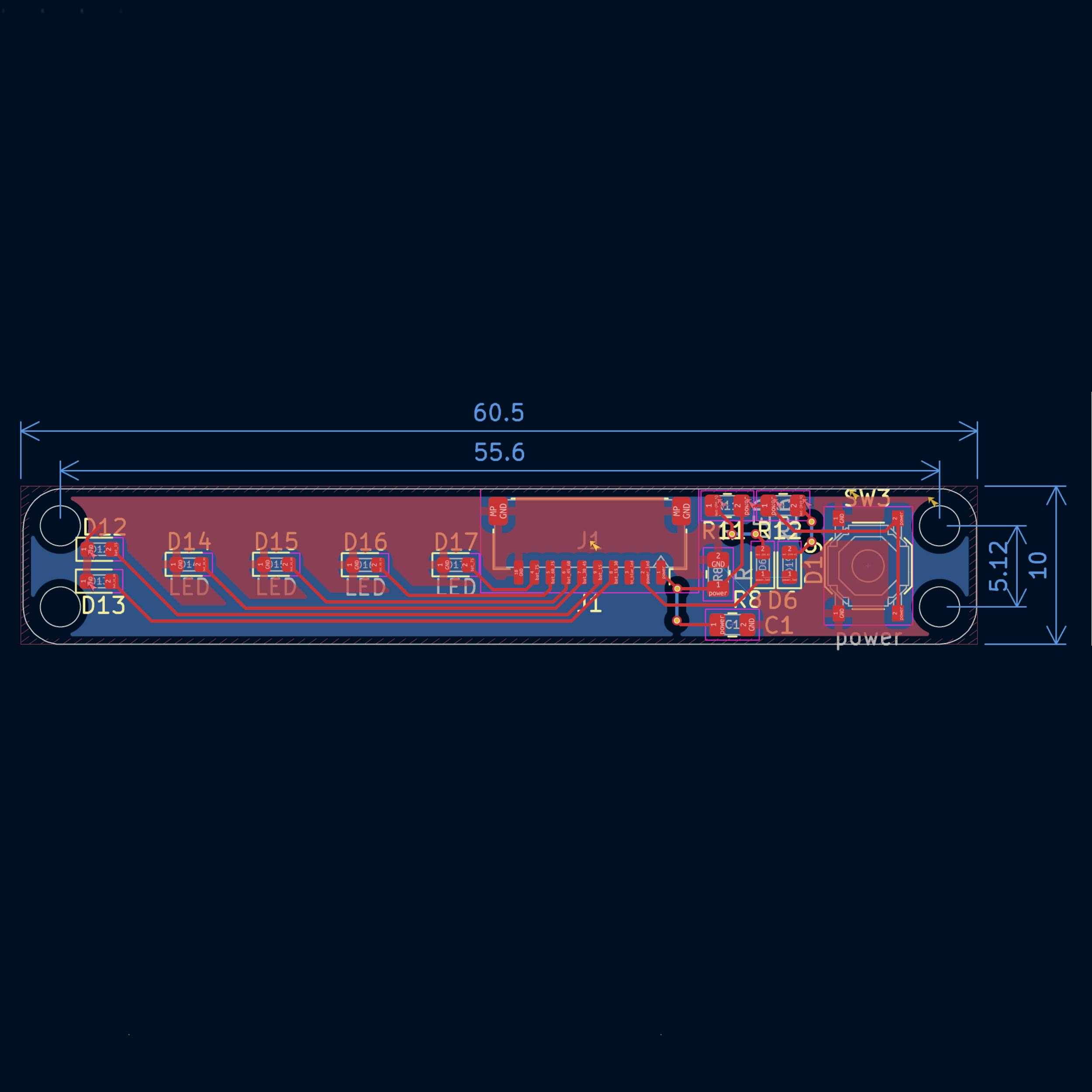

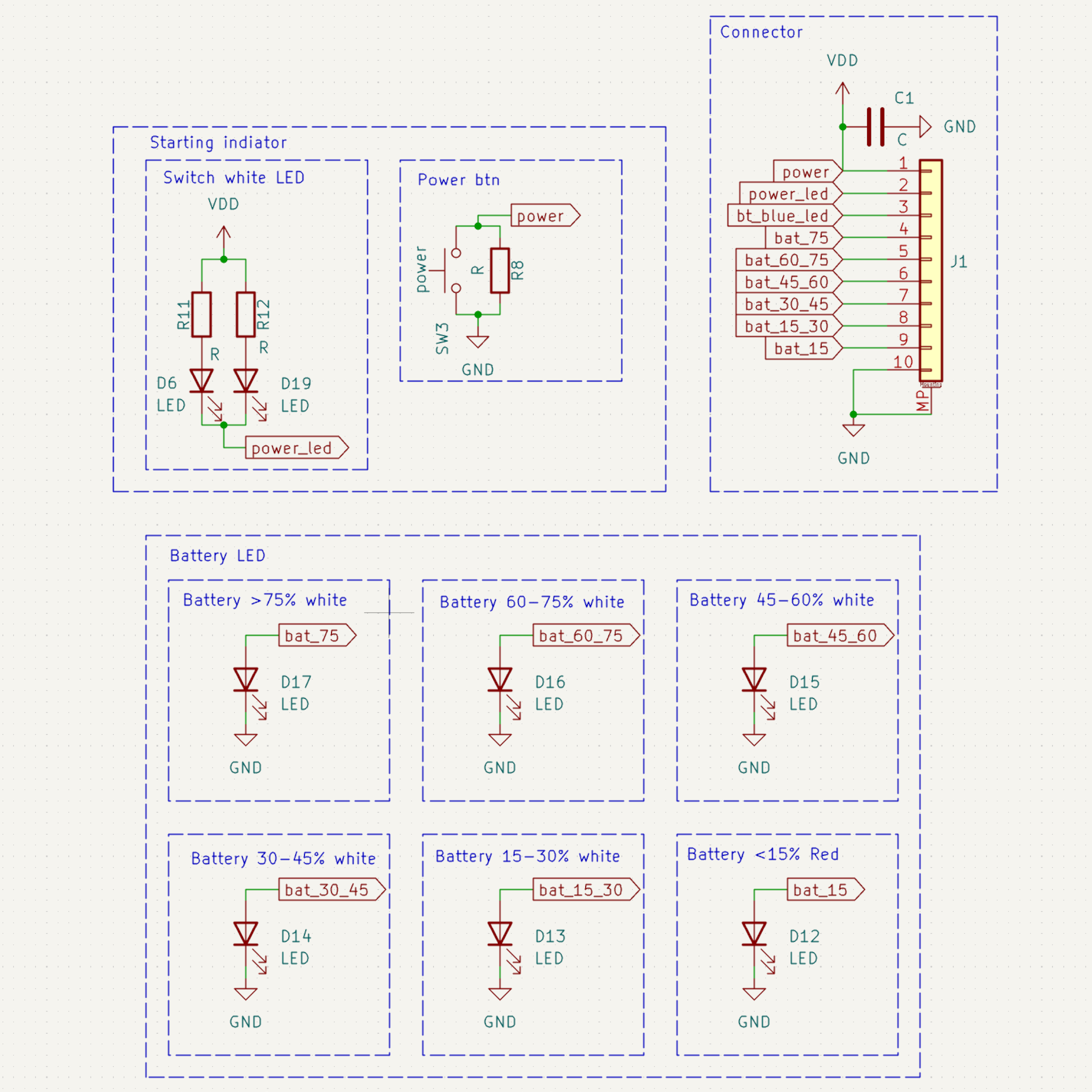

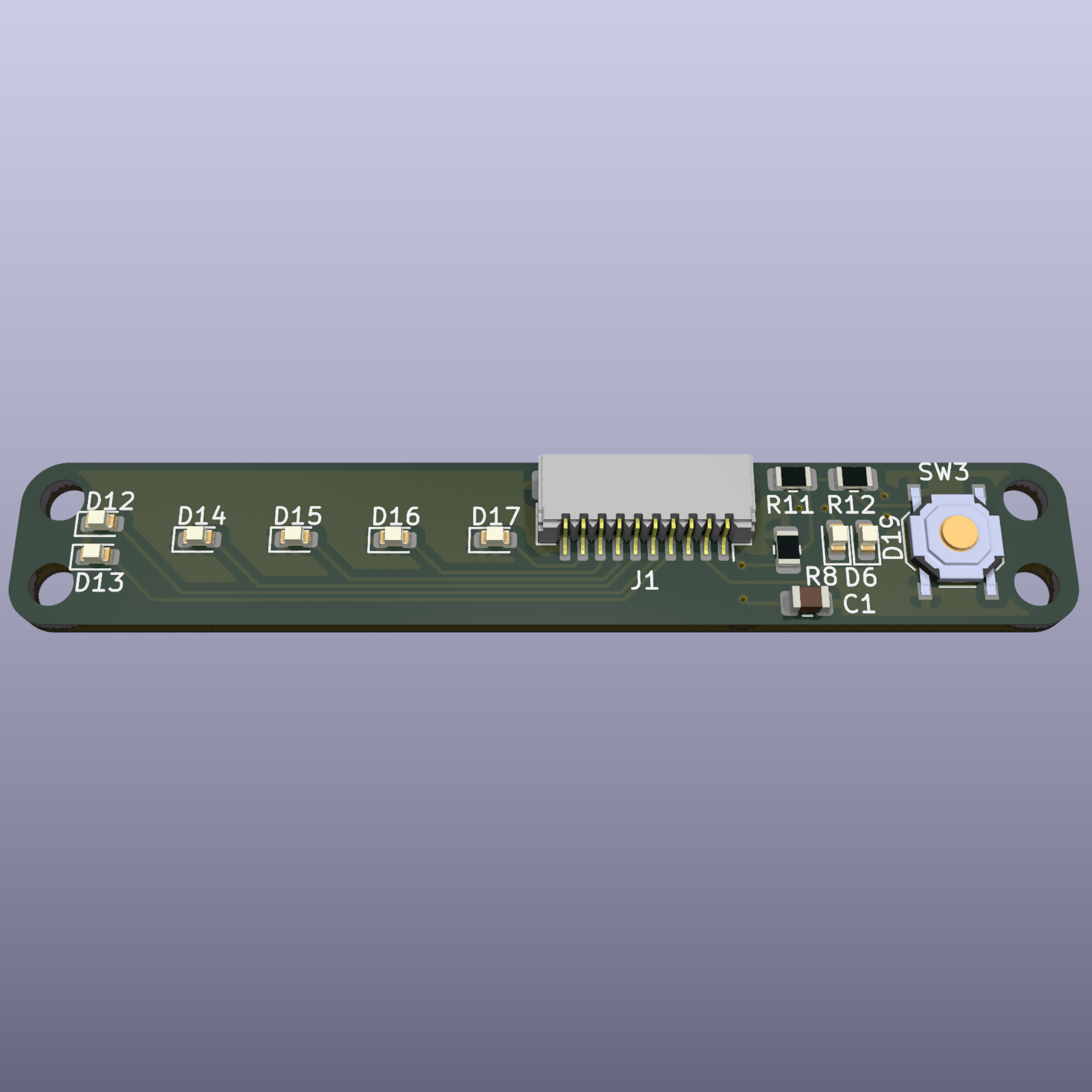

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
