BluetoothSpeakerKeyboard
🎛️ Minimalist PCB for speaker control
Bluetooth Speaker Keyboard is a minimalistic open-source PCB designed to provide simple control functionalities for Bluetooth speakers. The board features essential buttons for volume control, Bluetooth pairing, and play/pause functionality. It follows the Adafruit-compatible footprint, making it easy to integrate into existing projects.
🎯 Purpose
- 🔊 Seamless audio control: Easily manage volume, pairing, and playback.
- 🎛️ Compact and efficient: Designed for integration with Bluetooth speaker systems.
- 🛠️ Open-source and customizable: Modify the design to fit your specific needs.
- 🔌 Adafruit-compatible: Fits within Adafruit’s standard PCB footprint for easy use in DIY projects.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔉 Volume Control | Adjust the speaker’s volume up and down |
| 🔄 Play/Pause Button | Start or stop the music playback |
| 🔵 Bluetooth Pairing Button | Activate pairing mode for easy device connection |
| 🔧 Minimalist Design | Only essential components for simplicity |
| 🖥️ PCB Design | Open-source & customizable |
| 🌍 Use Cases | Embedded in DIY Bluetooth speakers, home automation systems |
| 🔌 Adafruit-Compatible | Follows Adafruit’s standard PCB footprint |
📐 PCB Design Preview

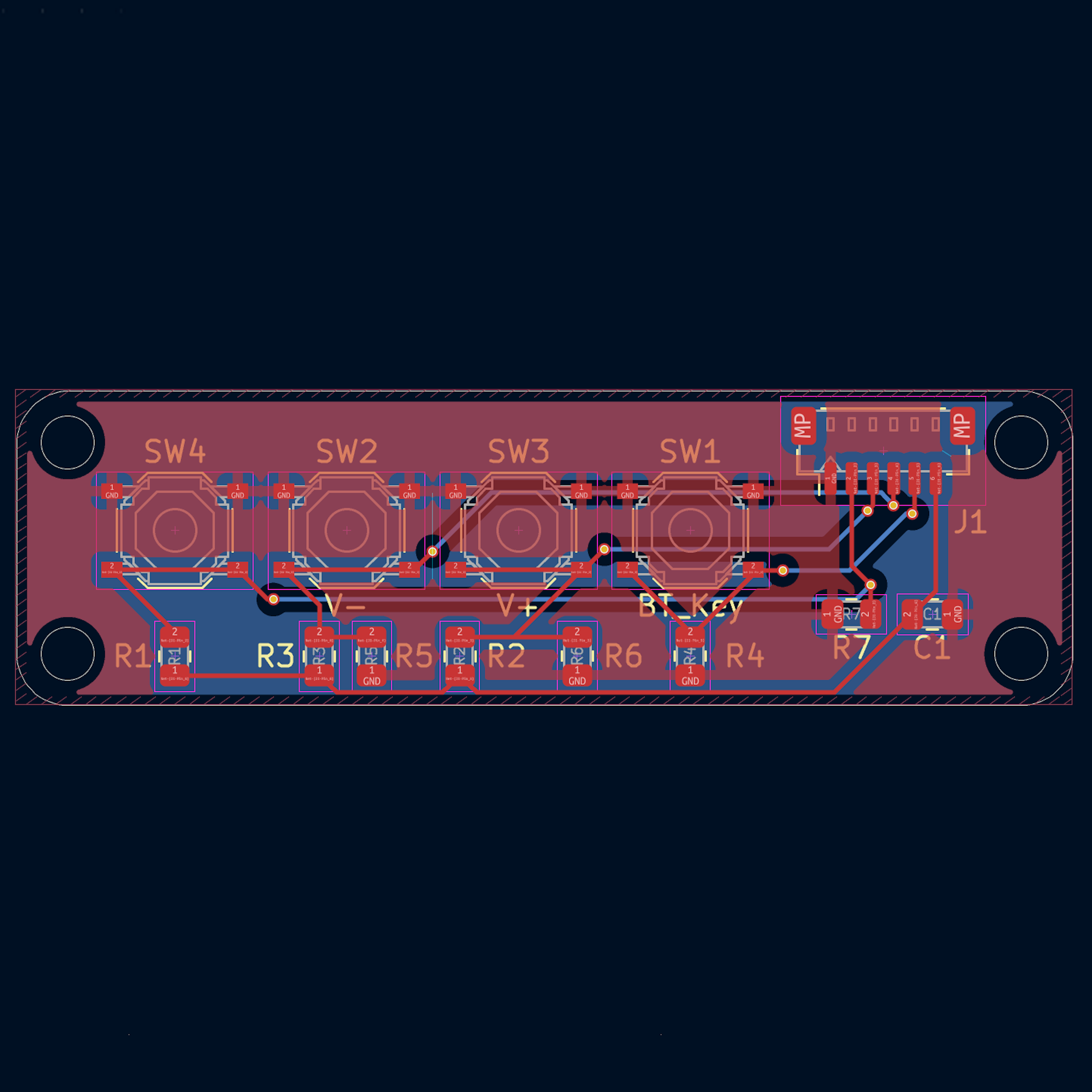

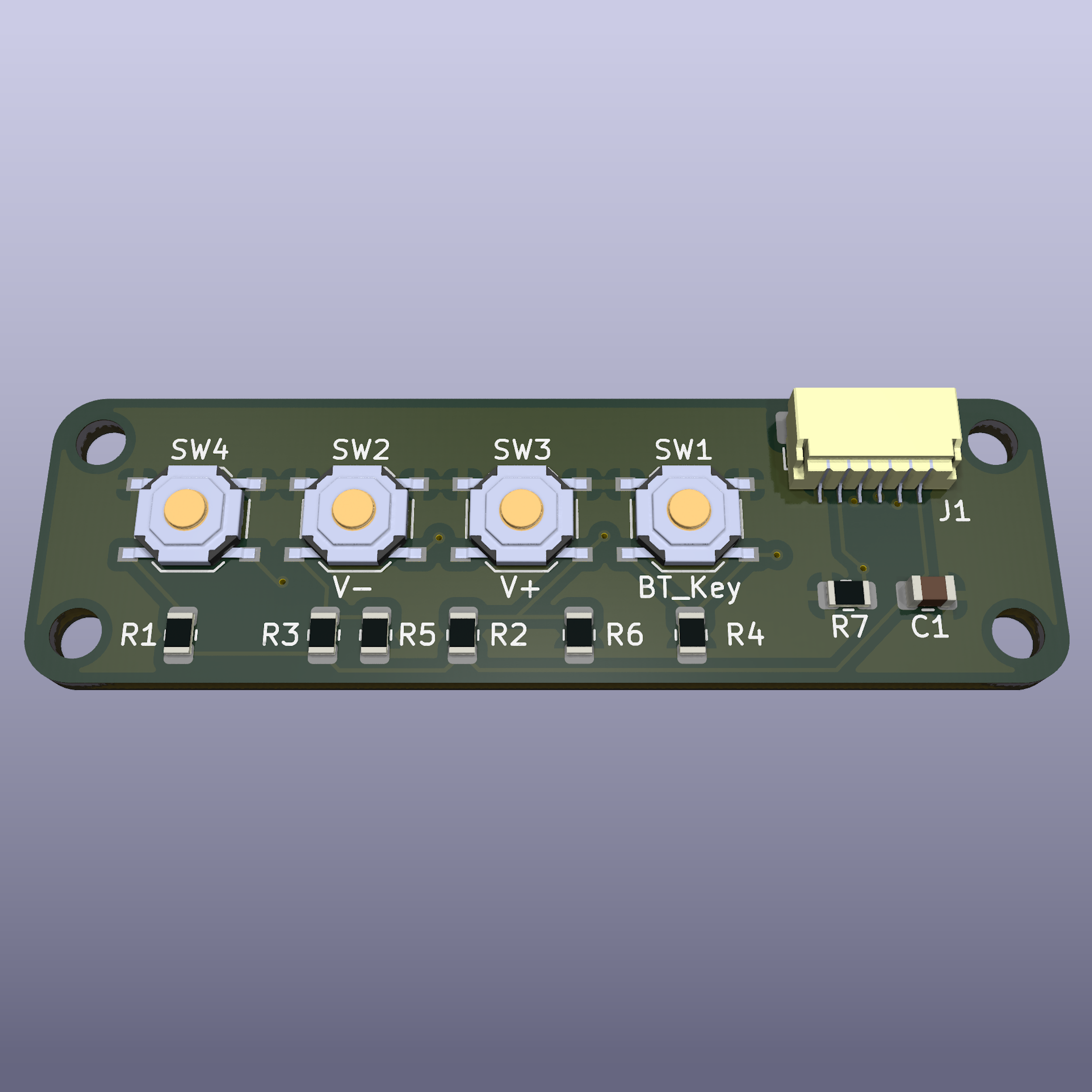

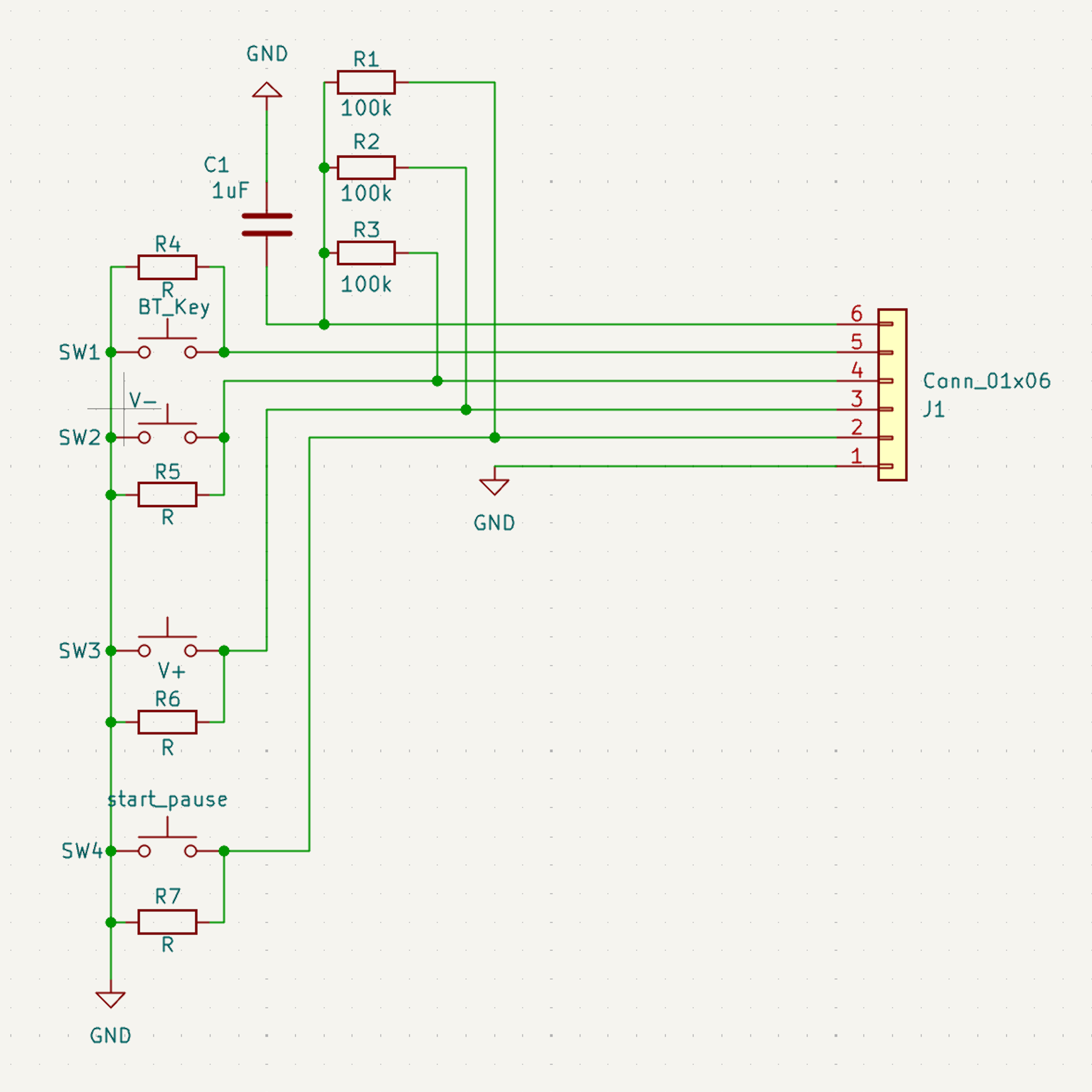

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
