D1R32InterfaceShield
🔌 Modular JST Shield D1R32
D1R32InterfaceShield is an open-source PCB that provides a reliable, modular interface between the UNO D1 R32 Board Module and various external modules via JST-SM & JST-SH connectors. It simplifies integration for IoT, automation, and embedded applications.
🎯 Purpose
- 🔌 Modular Interface: Bridges the UNO D1 R32 with sensors, actuators, and peripherals.
- 📏 Compact Design: Optimized layout for small enclosures and prototypes.
- 🛠️ Open-source Hardware: Fully customizable to match your project requirements.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔌 Board Compatibility | Fits the UNO D1 R32 Board Module |
| 📡 Connectors | JST-SM & JST-SH for quick, secure connections |
| ⚡ Power Handling | Supports 3.3V and 5V logic |
| 🛠️ GPIO Access | Breaks out key digital and analog pins for peripherals |
| 🔧 Stability Components | Includes capacitors for signal conditioning |
| 🖥️ PCB Design | Open-source and easy to modify |
| 🌍 Use Cases | IoT, automation, robotics, prototyping |
📐 PCB Design Preview

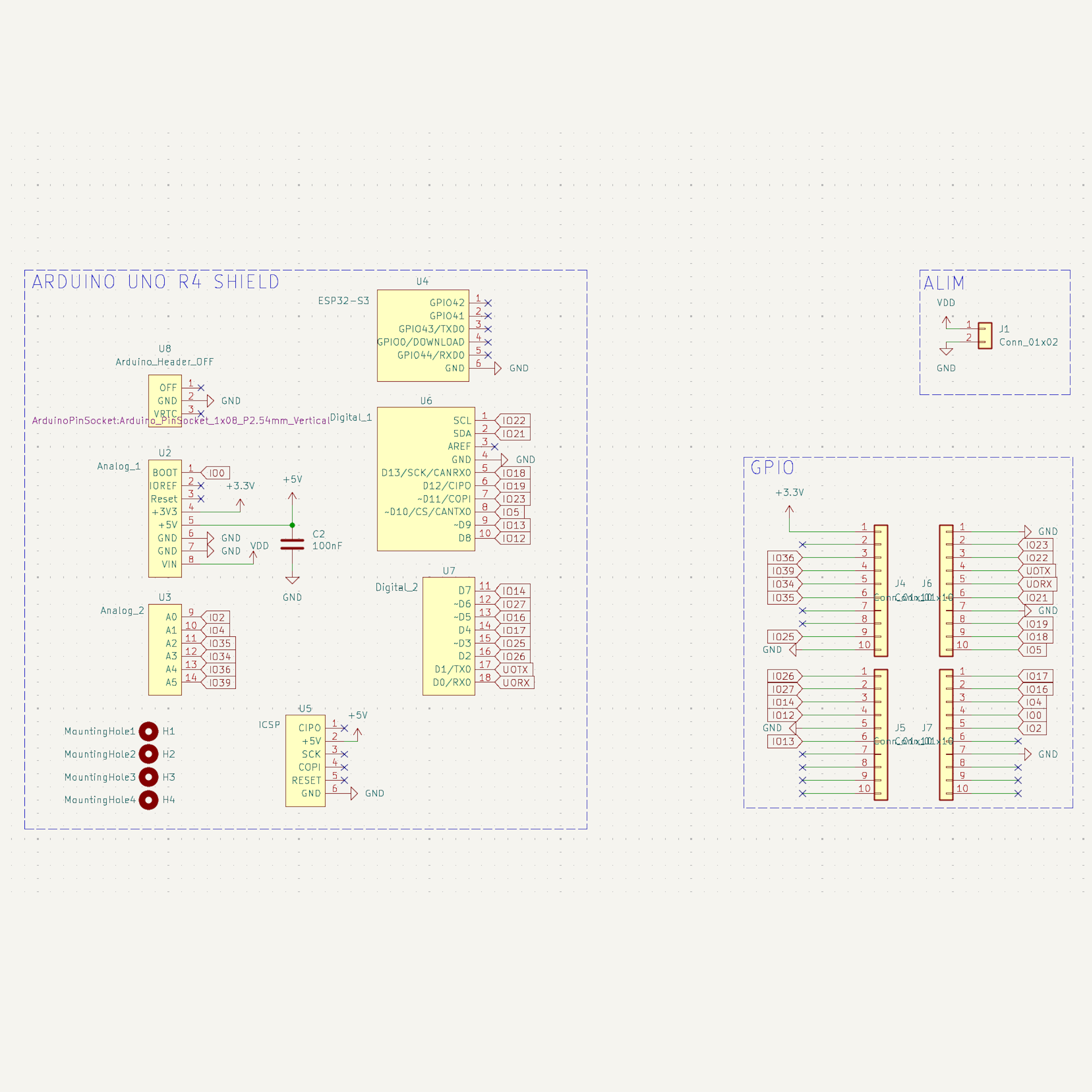

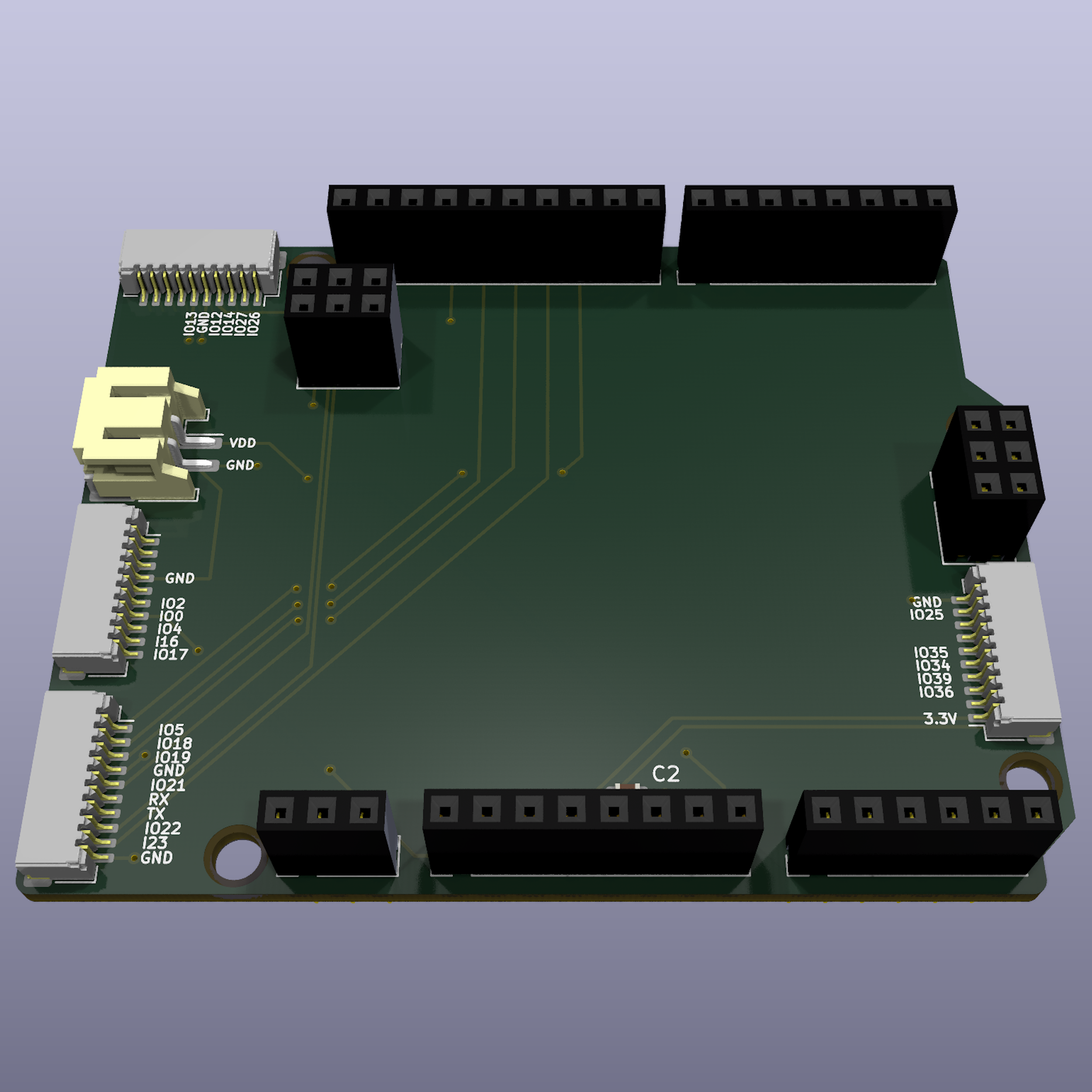

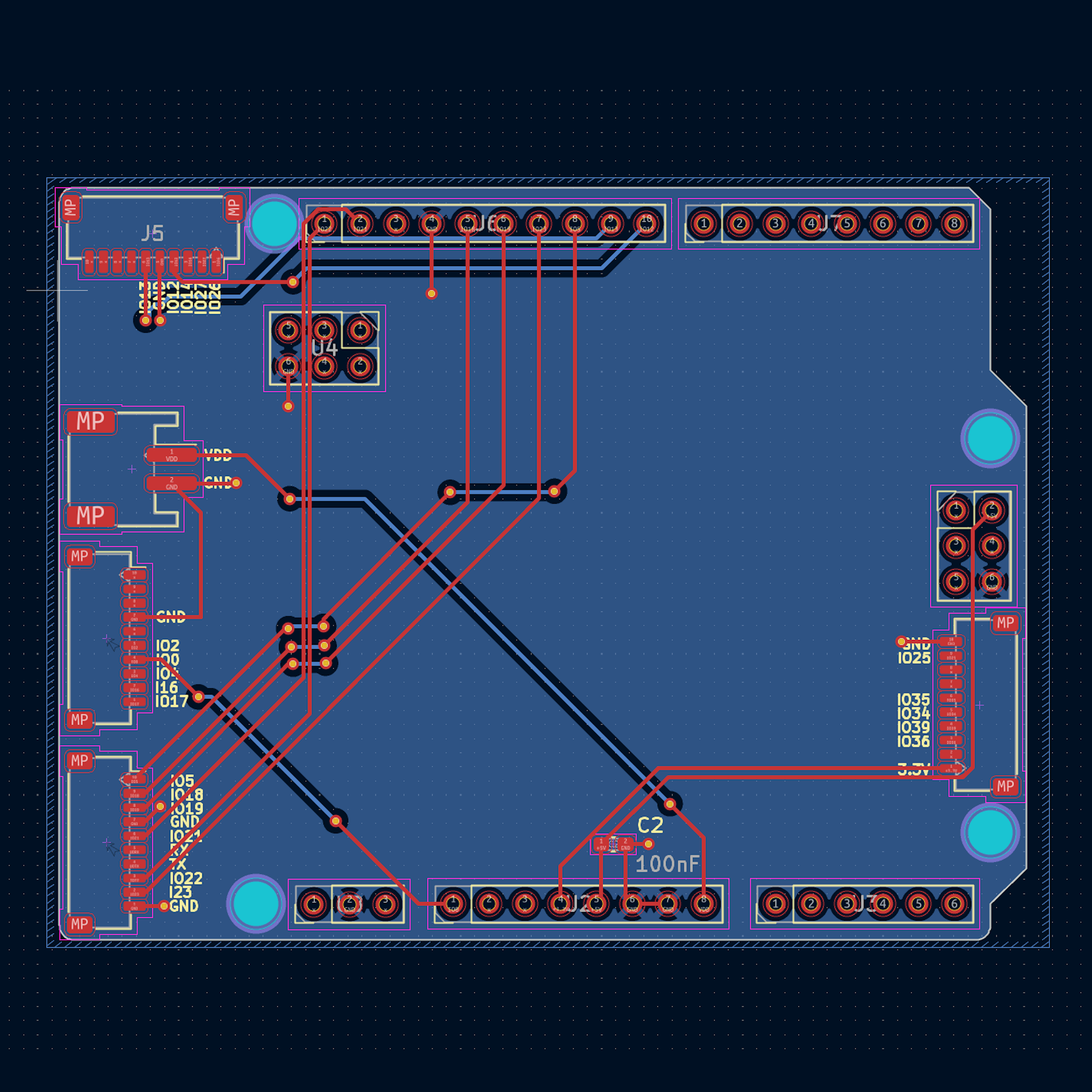

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
