Esp32InterfacePcb
🔌 Interface ESP32 modulaire
Esp32InterfacePCB is an open-source PCB designed to provide a reliable interface between an Espressif ESP32-WROOM-32E module and various external modules using JST-SM & JST-SH connectors. This PCB simplifies ESP32 integration into embedded, IoT, and home automation projects.
🎯 Purpose
- 🔌 Modular Interface: Facilitates the connection between an ESP32-WROOM-32E and other peripherals.
- 📏 Compact & Optimized Design: Suitable for embedded project constraints.
- 🛠️ Open-source & Customizable: Modify and adapt the design to fit your specific needs.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔌 ESP32 Interface | Compatible with the ESP32-WROOM-32E module |
| 📡 Connectors | JST-SM & JST-SH for easy connections |
| ⚡ Power Supply | Supports 3.3V |
| 🛠️ GPIO Access | Access to key GPIO pins for seamless integration |
| 🔧 Capacitors | Decoupling capacitors for signal stability |
| 🖥️ PCB Design | Open-source & customizable |
| 🌍 Use Cases | IoT, embedded systems, automation, robotics, rapid prototyping |
📐 PCB Design Preview

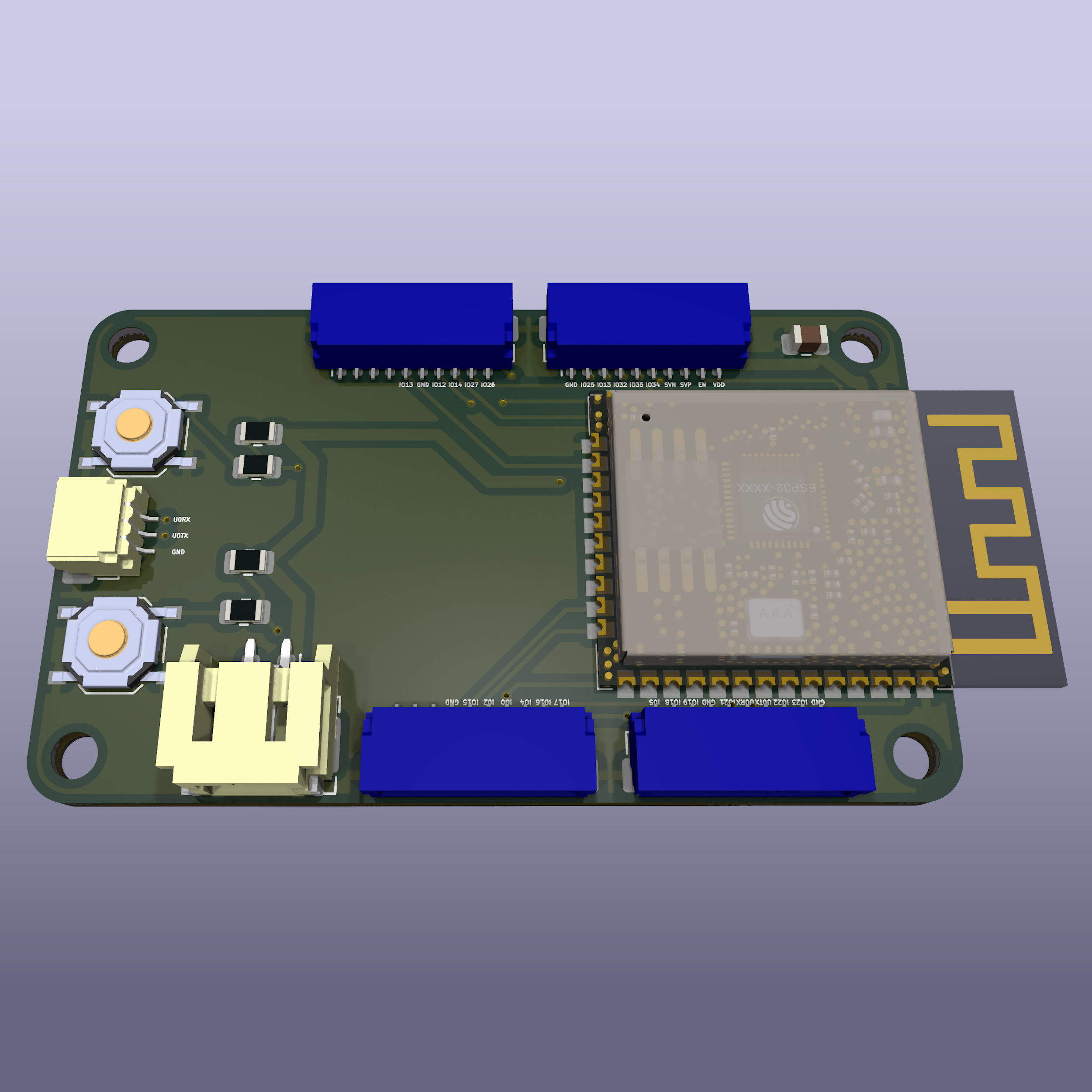

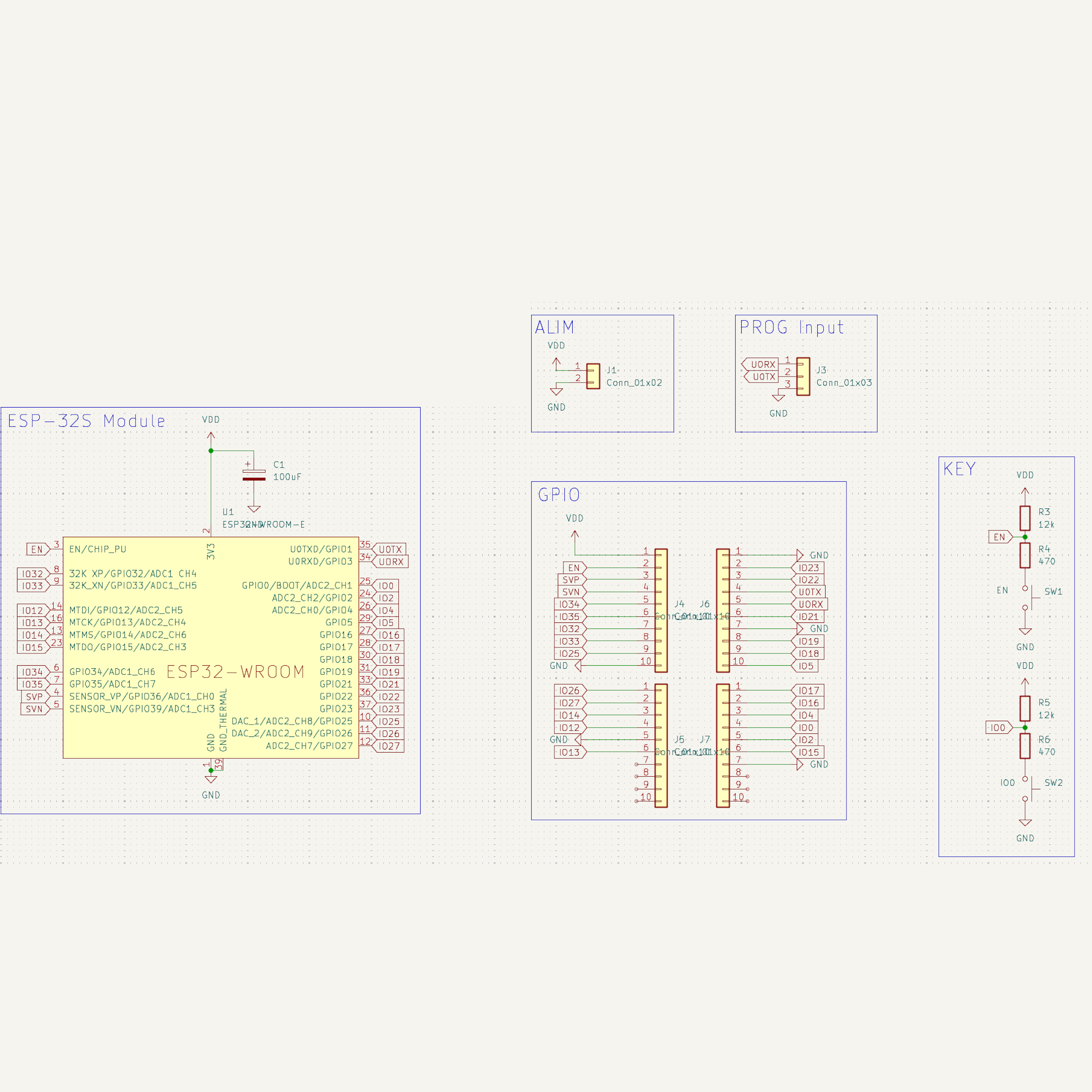

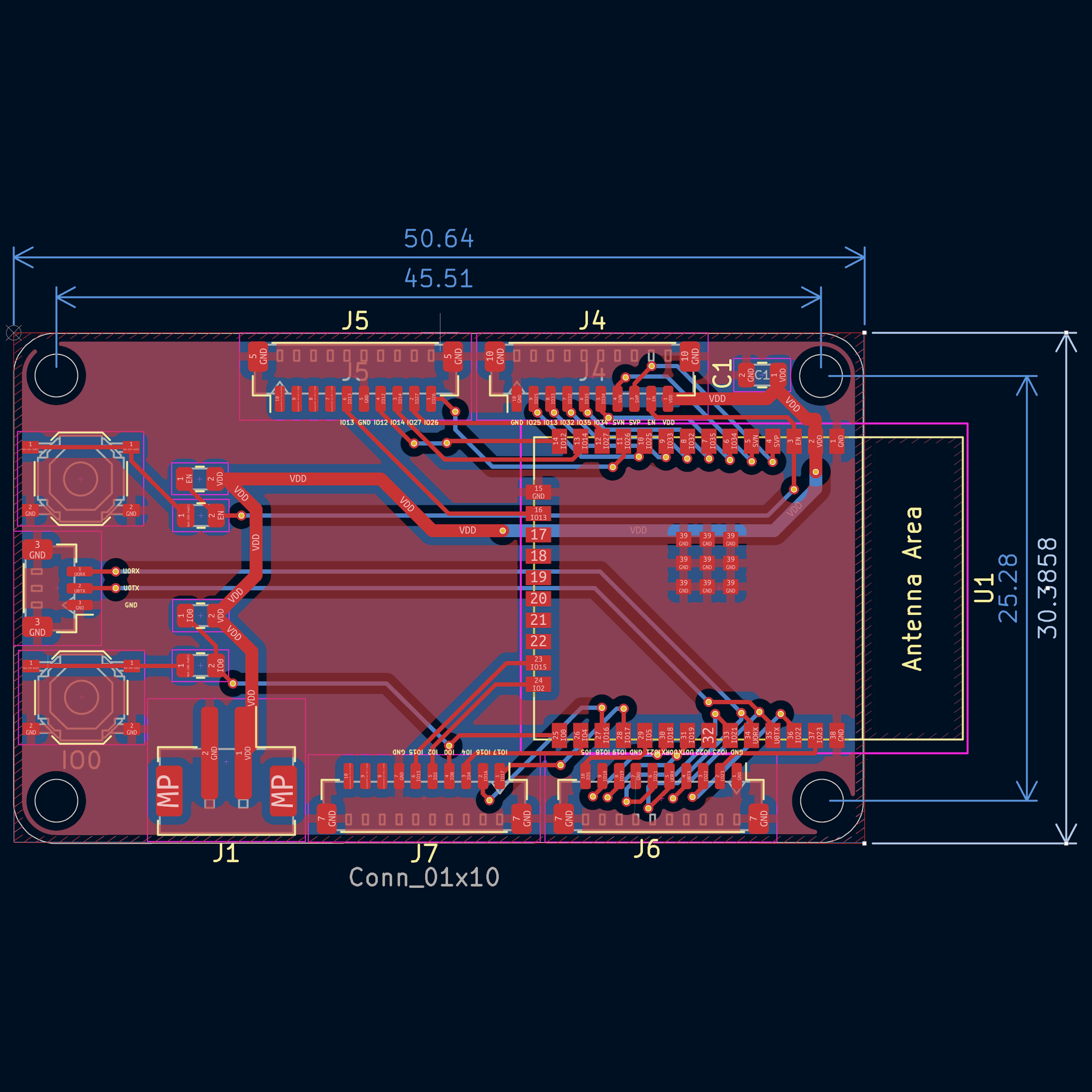

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
