MicroUSB2JST
🔌 MicroUSB -> JST-SH & JST-PH
MicroUSB2JST is an open-source PCB that acts as a bridge between a Micro USB port and JST connectors (JST-SH and JST-PH). This module is designed to simplify connections for embedded projects, prototyping, and power distribution.
🎯 Purpose
- 🔌 Convenient power and data interface: Easily connect USB power or data lines to JST-equipped devices.
- 📏 Compact and Adafruit-compatible: Designed to fit within Adafruit’s standard PCB footprint.
- 🛠️ Open-source and customizable: Modify and adapt the design to suit your specific needs.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔌 Connector 1 | Micro USB (⚡ power & 🔄 data) |
| 🔌 Connector 2 | JST-PH (⚡ higher current capacity) |
| 🔌 Connector 3 | JST-SH (📏 small form factor) |
| 🖥️ PCB Design | 🆓 Open-source & ✏️ customizable |
| 🎯 Use Cases | ⚡ Power distribution, 🛰️ sensor connections, 🤖 embedded systems |
📐 PCB Design Preview

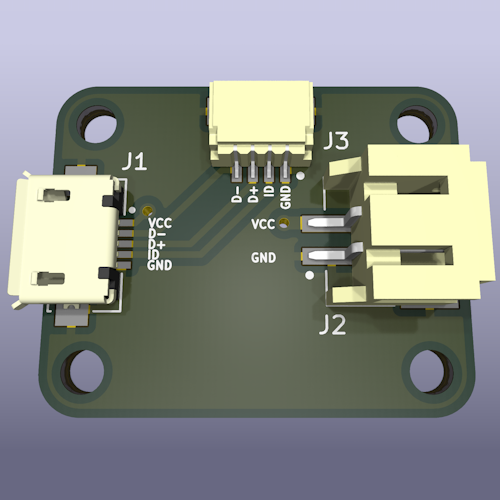

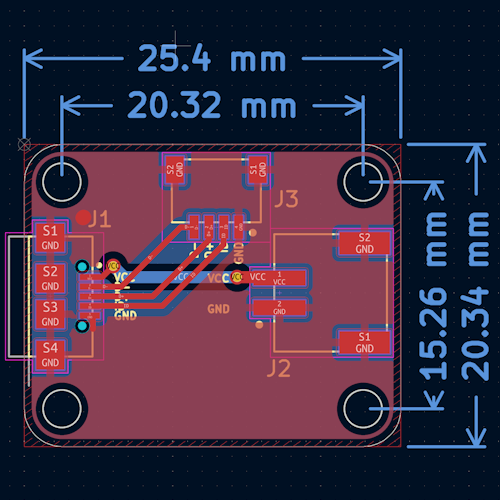

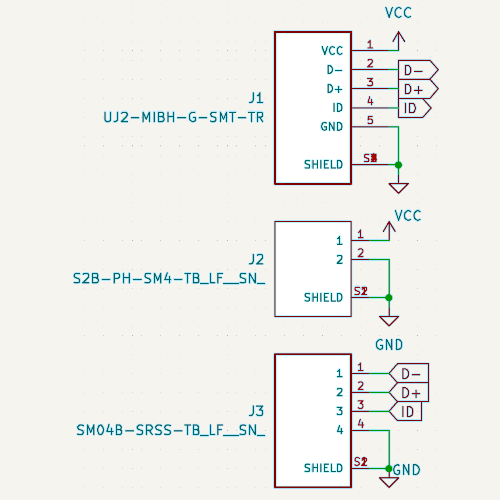

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
