UsbUartBridge
🔌 USB-to-UART bridge for embedded systems
UsbUartBridge is an open-source PCB designed to provide a USB-to-UART bridge for seamless serial communication between a computer and microcontrollers. The board features JST-SH & JST-PH connectors for easy integration into embedded projects, IoT devices, and prototyping setups.
🎯 Purpose
- 🔌 Reliable USB-to-Serial Conversion: Enables communication between a PC and embedded systems via UART.
- 📏 Compact and Adafruit-compatible: Designed to fit within Adafruit’s standard PCB footprint.
- 🛠️ Open-source and customizable: Modify and adapt the design to suit your specific needs.
📝 Features
| 🏷️ Feature | 🔍 Description |
|---|---|
| 🔌 USB Interface | Micro-USB (for PC connection) |
| 📡 UART Interface | TX, RX, DTR |
| 🔋 Voltage Options | 3.3V & 5V selectable output |
| 🛠️ Connectivity | JST-SH & JST-PH connectors for easy integration |
| 🔧 Capacitors | Decoupling capacitors for stability |
| 🖥️ PCB Design | Open-source & customizable |
| 🌍 Use Cases | Debugging & Programming microcontrollers, IoT device communication, serial data transfer |
📐 PCB Design Preview

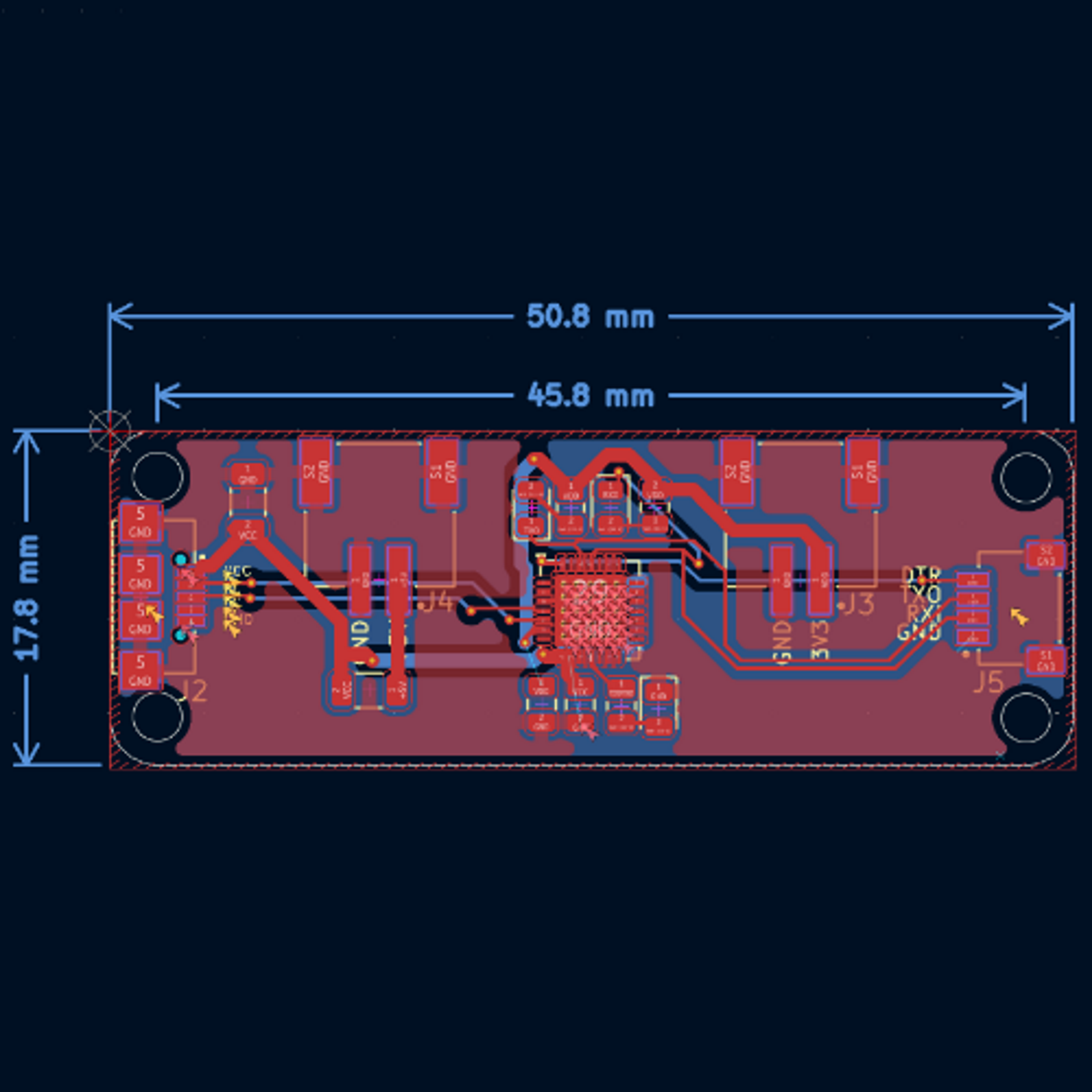

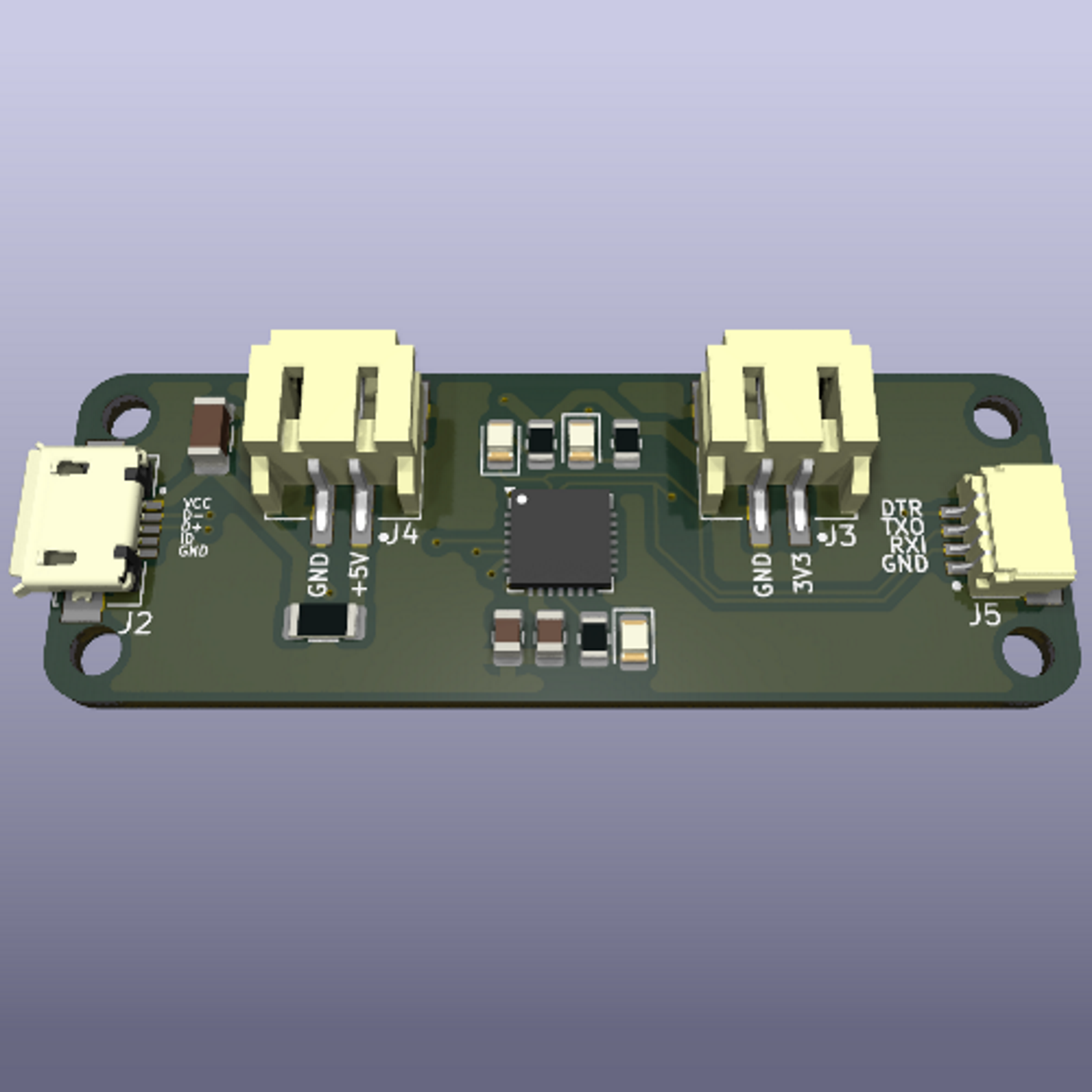

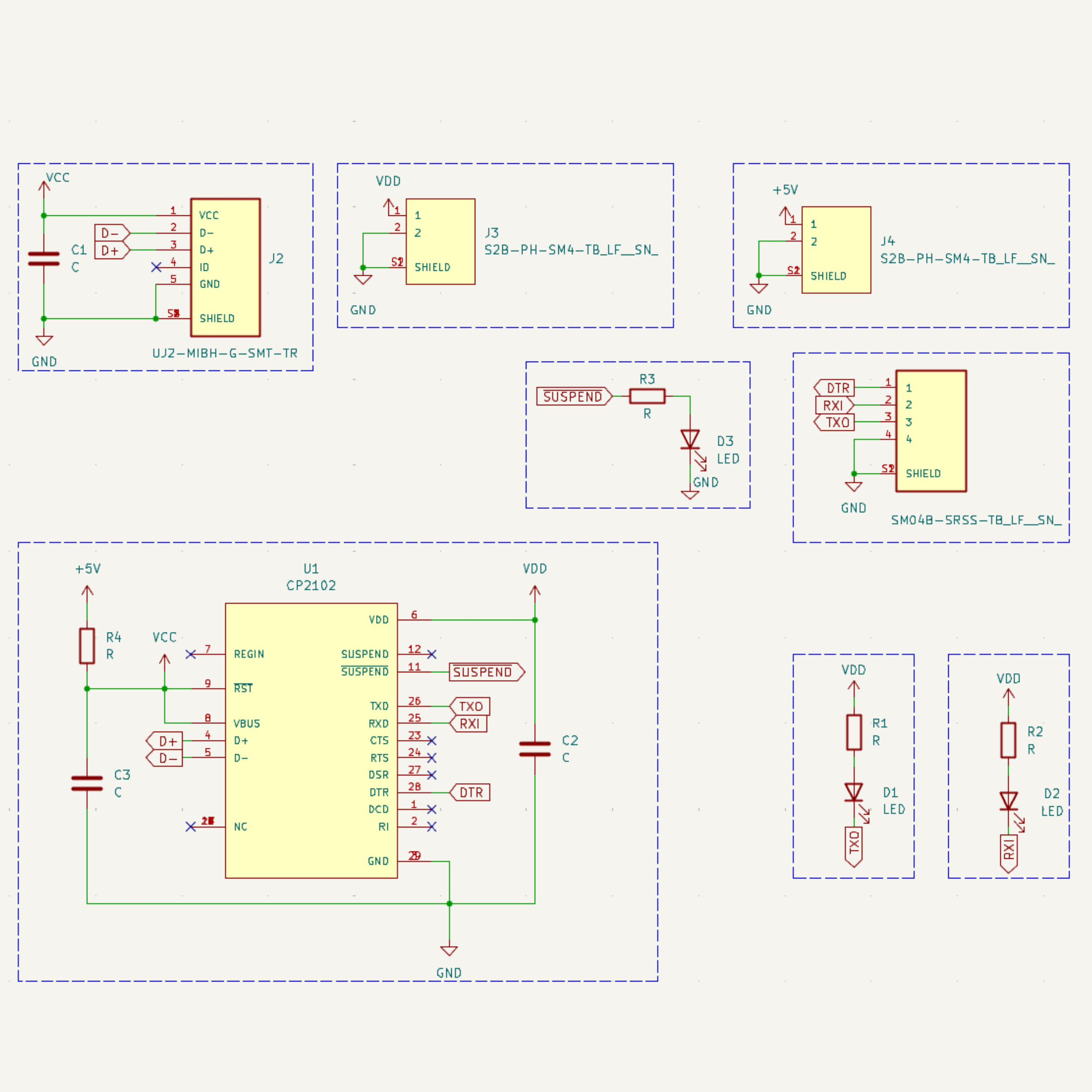

| 📜 Schematic | 🖥️ PCB Layout | 🏗️ 3D |
|---|---|---|
 |
 |
 |
